Drilling
Services
Serving City and County Entities in California & Arizona
Landfill Gas Well Drilling Backed by 45+ Years of Engineering Expertise
With more than four decades in landfill gas and general engineering, we provide specialized drilling services designed for the demanding conditions of California and Arizona landfills. Our team delivers precise, efficient drilling for landfill gas extraction wells, deep monitoring wells, leachate collection, and other environmental infrastructure needs.
We understand the regulatory landscape, soil conditions, and environmental requirements unique to the Southwest — and we use the right equipment and methods to ensure every well is drilled safely, compliantly, and built to perform long-term.
Professional Drilling Services Include:
Landfill gas extraction wells (up to 200 ft)
24–36” diameter wells for LFG and remediation systems
Deep monitoring wells
Leachate collection system drilling
Exploratory/soil boring for engineering and design
General environmental and civil drilling support

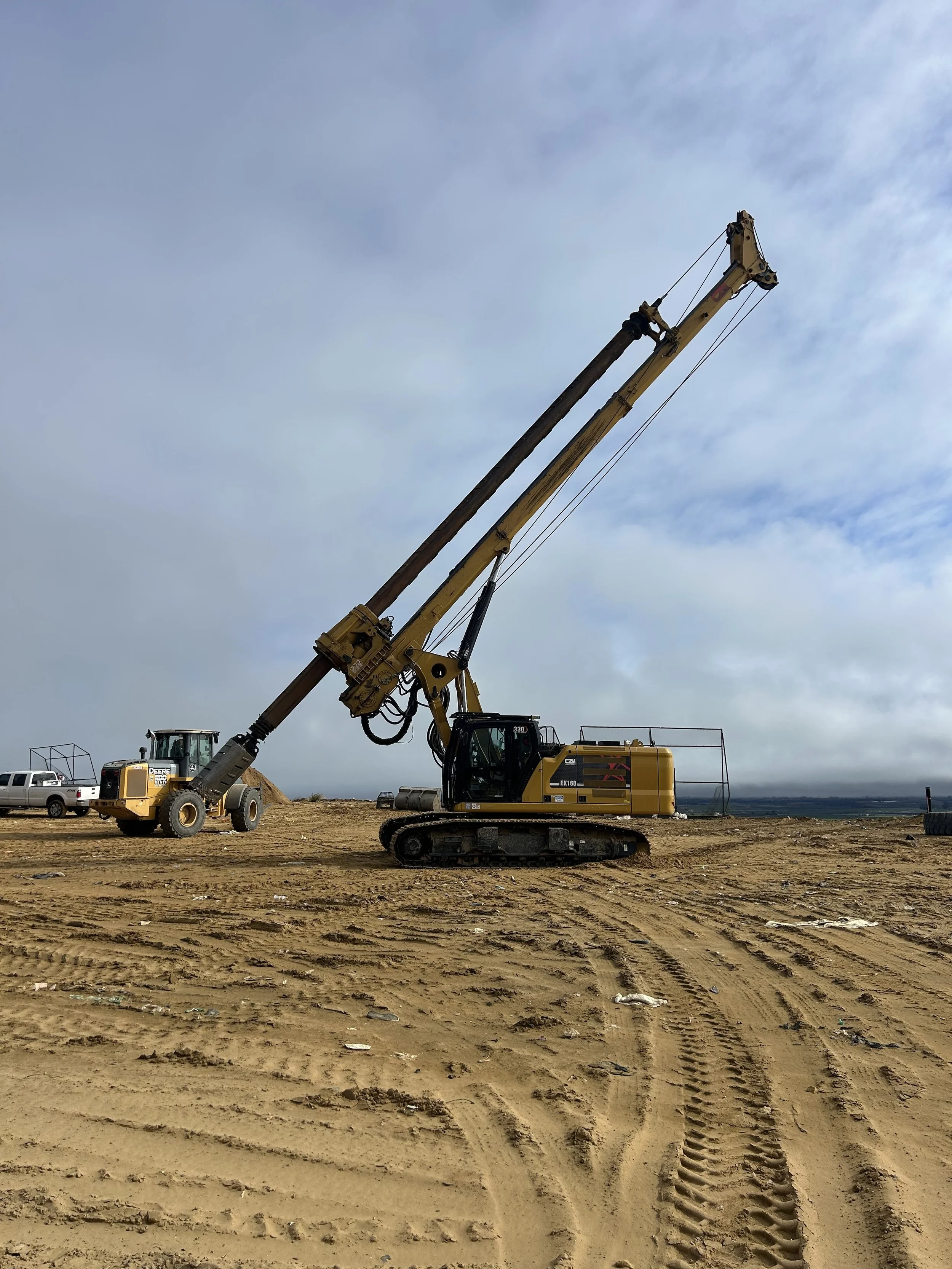

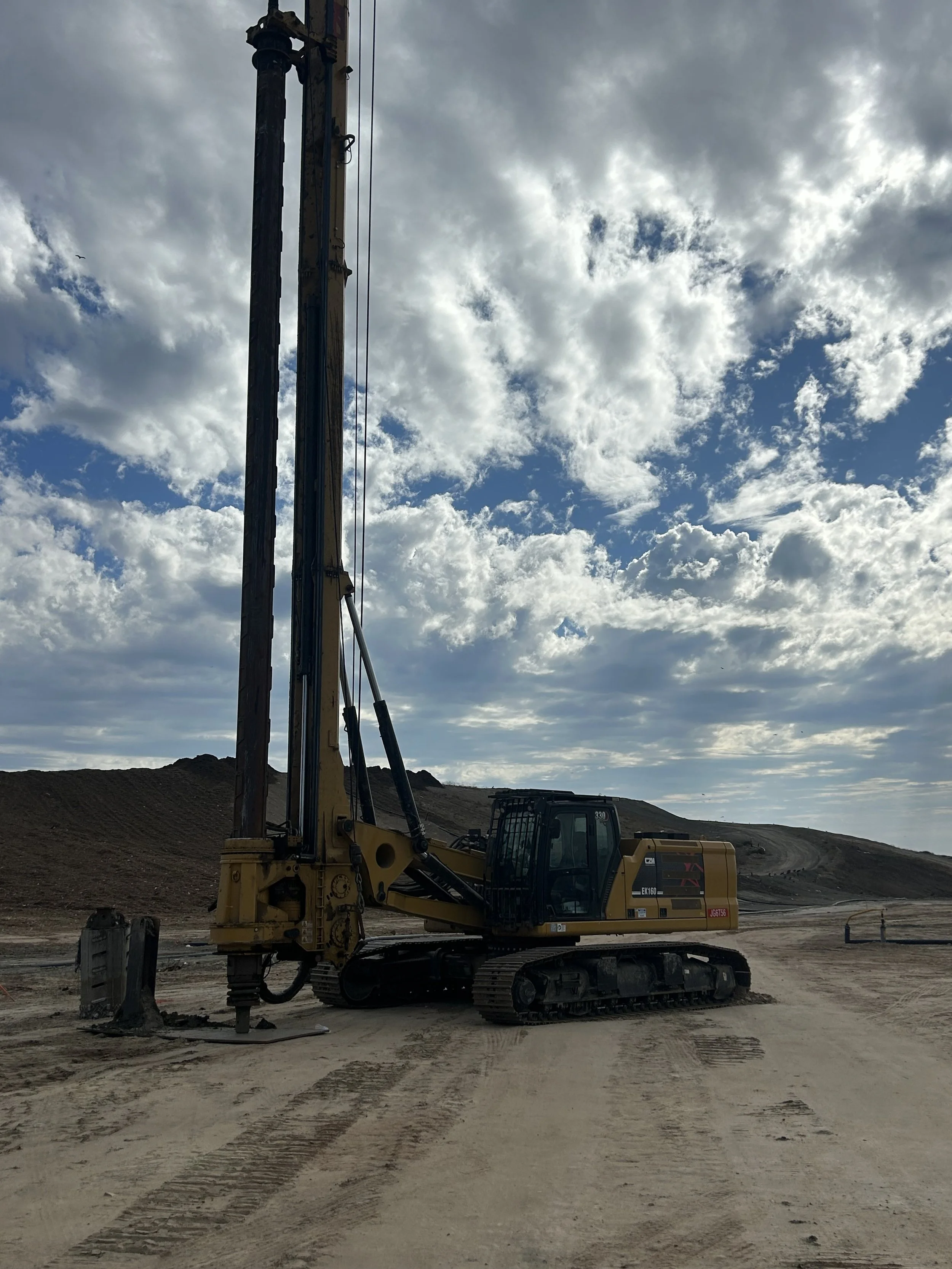

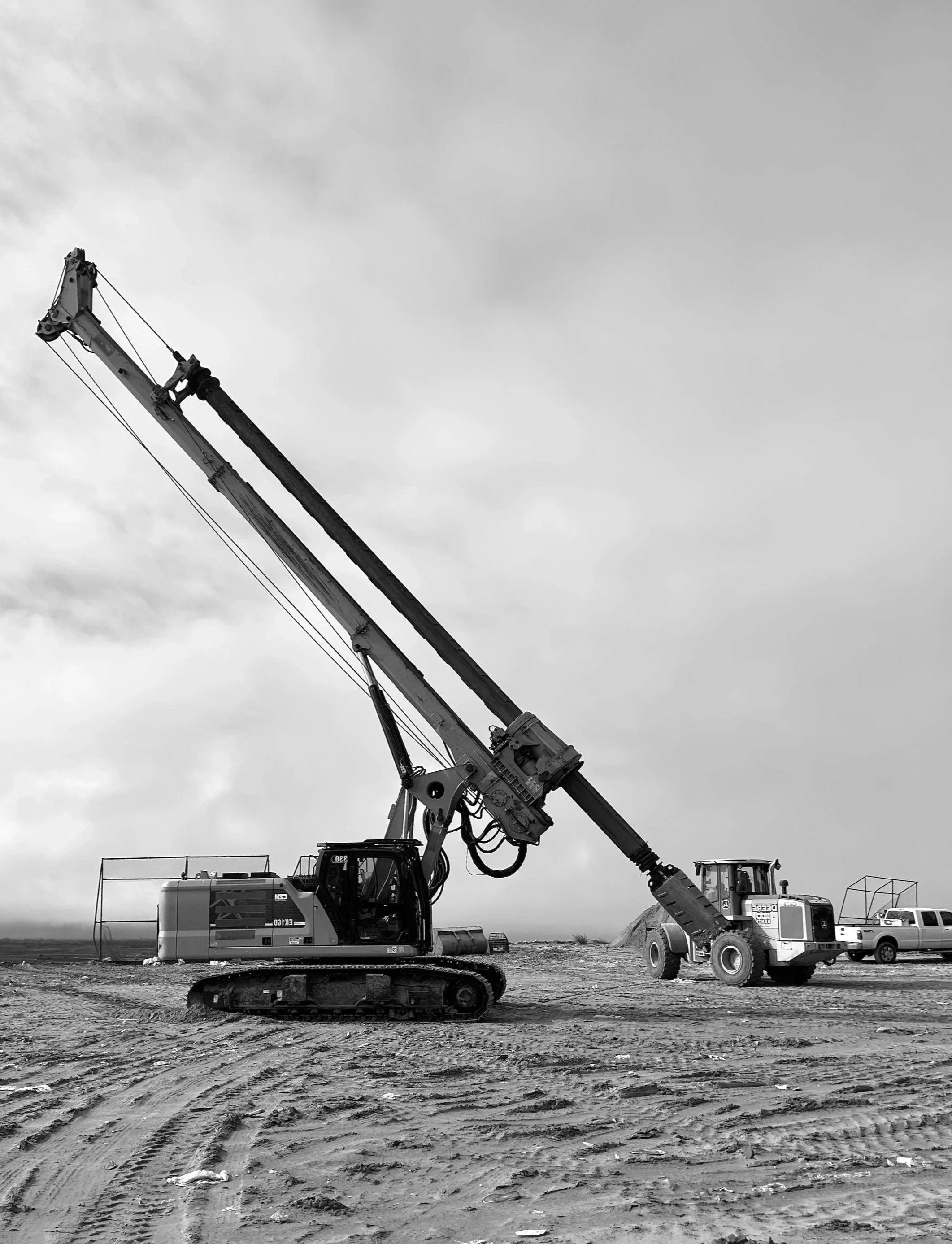

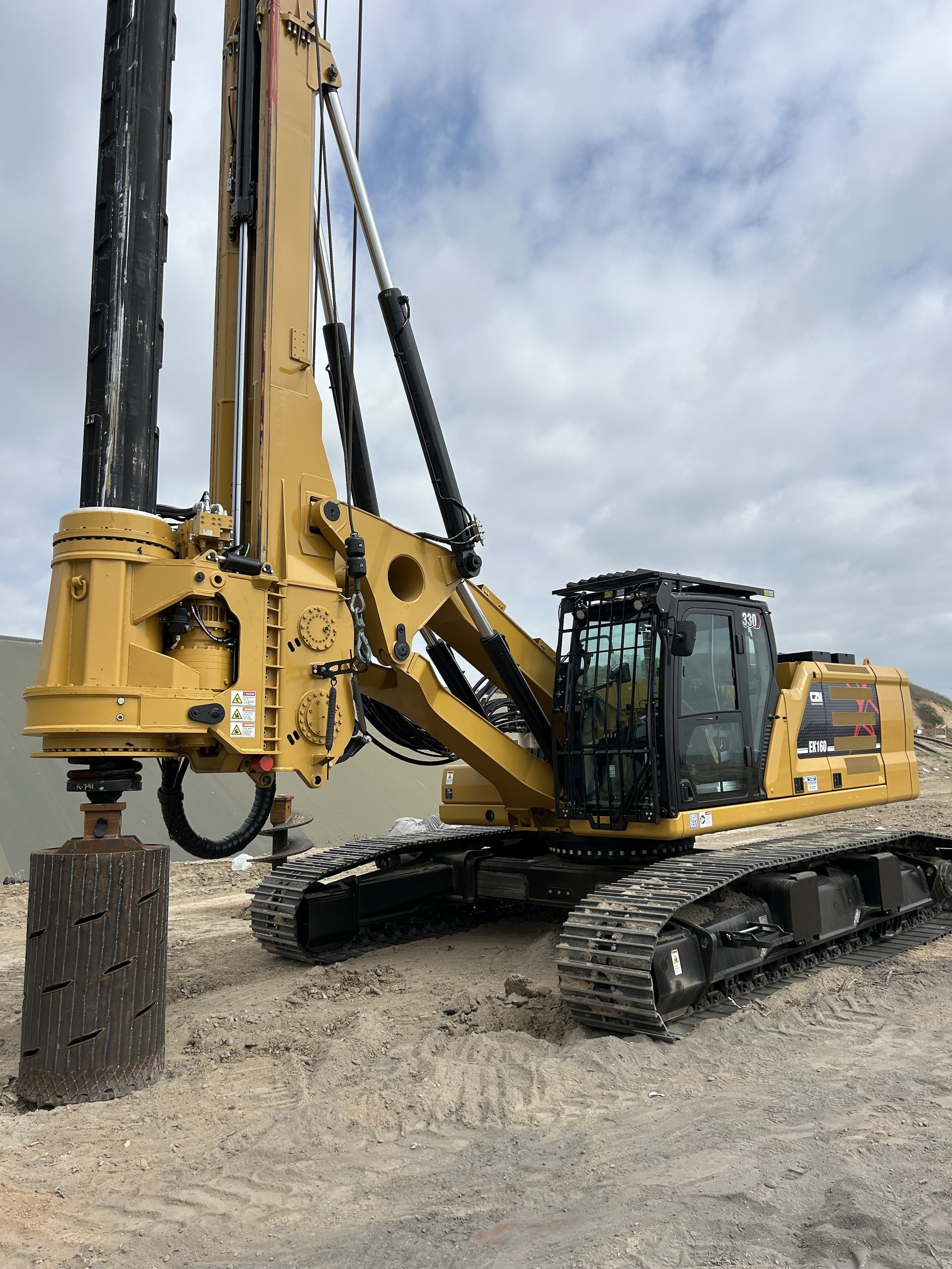

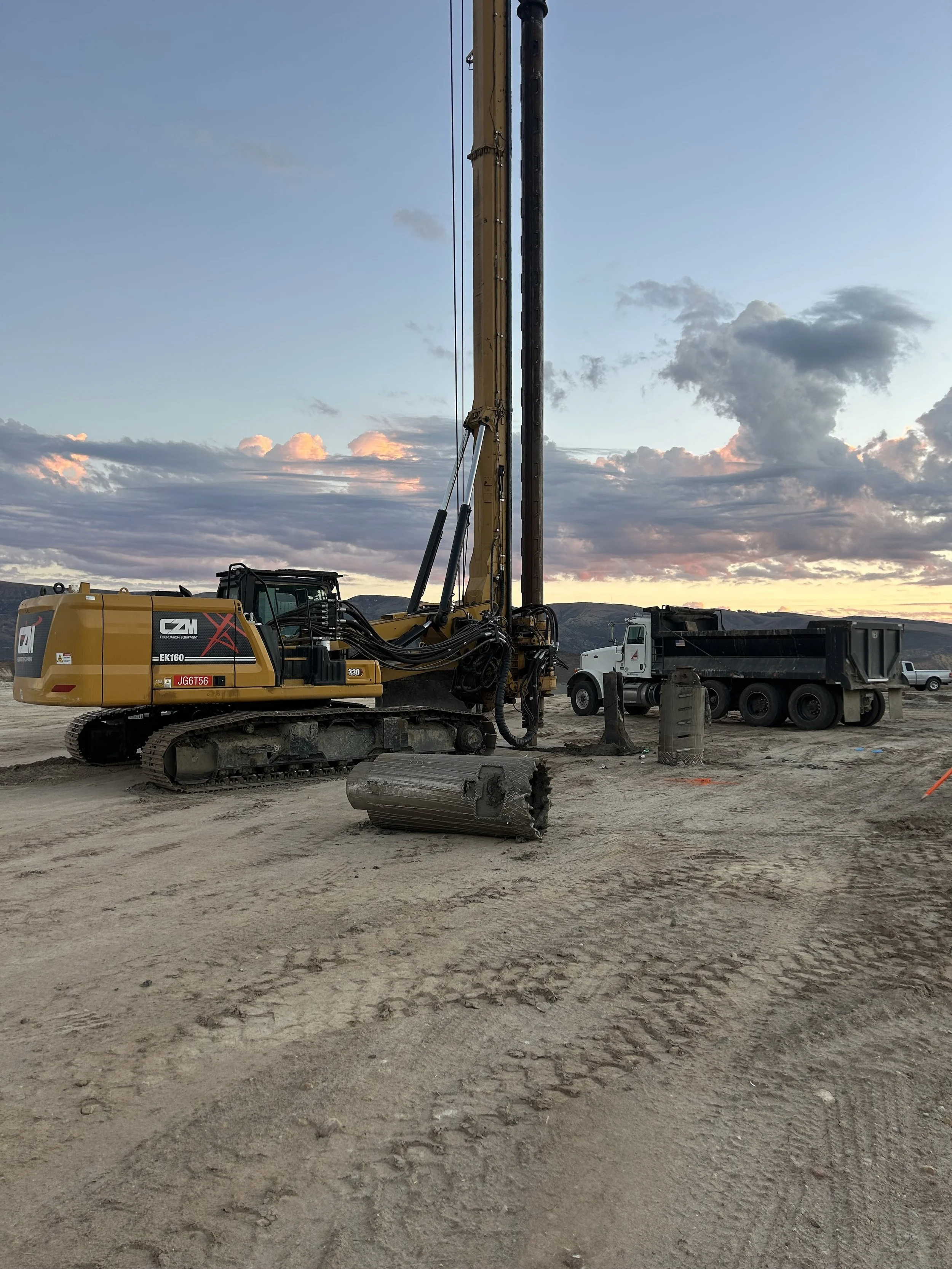

Our EK160 Rig:
Built for Heavy-Duty Landfill Conditions
The EK160 drilling rig allows us to complete large-diameter, deep landfill gas wells with speed and accuracy. Engineered for tough soil conditions, the EK160 provides the torque, power, and reliability needed for environmental drilling on active landfill sites.
| Capability / Specification | Details |
|---|---|
| Application | Ideal for LFG extraction wells, large wellfields, deep monitoring wells |
| Maximum drilling depth | Up to 200 ft |
| Drilling diameter | 24–36” (landfill wells) |
| Soil performance | Efficient in mixed waste, cover soils, compacted landfill environments |
| Chassis | Cat® 330 Next Gen |
| Installed power | 273 hp (204 kW) |
| Maximum torque | 155,100 ft-lbs |
| Cell | 10 ft (3,050 mm) |
| Crowd force | 44,220 lbf |
| Main winch line pull | 41,000 lbf |
| Operating weight | 105,000 lbs |
Providing top quality workmanship for county and city entities in California and Arizona
